IPv6 Address Configuration

SLAAC and the role of Router in IPv6 networks

Carsten Strotmann

Created: 2025-01-27 Mon 20:12

Agenda

  • The role of router in IPv6 networks
  • SLAAC Addressing Problems
  • IPv6 Privacy Extensions
  • Stable Privacy-Enhanced Addresses

The role of router in IPv6 networks

IP-Addresses for hosts in an IPv6 world

  • In IPv6 networks, it is perfectly fine …
    • For one interface to have multiple IPv6 addresses (possibly from different prefixes)
    • One network segment to have multiple routers
      • Redundant for the same network prefix or
      • Routers announcing different prefixes
    • One host to have more than one gateway addresses (default route)

The role of router

  • Routers play a central role in managed IPv6 networks
  • The routers advertise:
    • Available network prefixes and their lifetimes
    • Gateway addresses
    • Address configuration policy (SLAAC, DHCPv6)
  • IPv6 implements “fate sharing” for gateway addresses (RFC 5505 - Principles of Internet Host Configuration)

Router advertisements (RA)

  • An IPv6 node sends a router solicitation to the all-routers address: ff02::2.
  • Routers reply with “router advertisement” messages, unicasted to the node's LLA (link-local fe80::/10 address).
  • Router send router advertisement (RA) messages periodically to the all-nodes address: ff02::1.

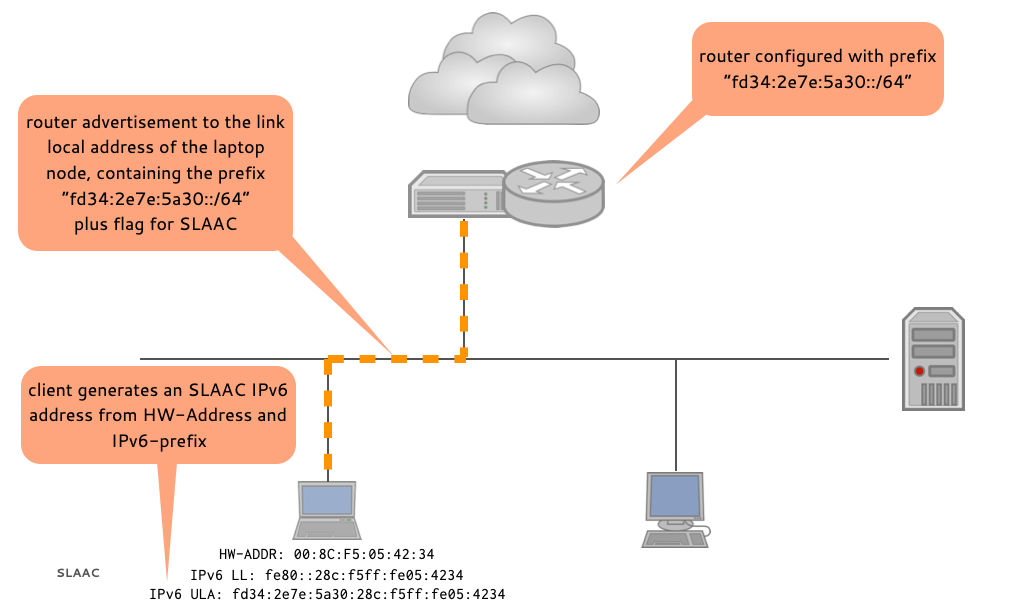

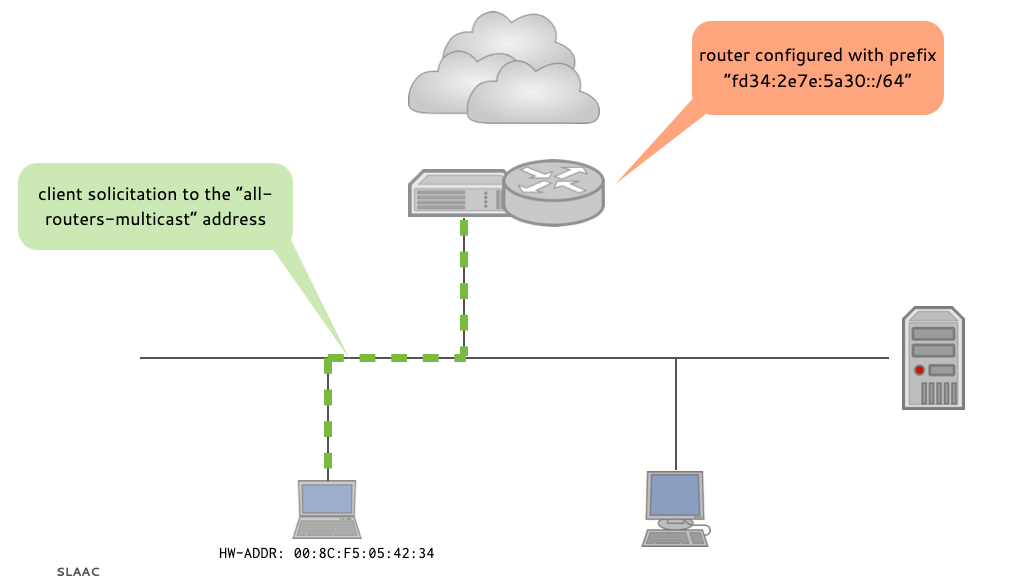

IPv6 Address Configuration


IPv6 Address Configuration


IPv6 Address Configuration

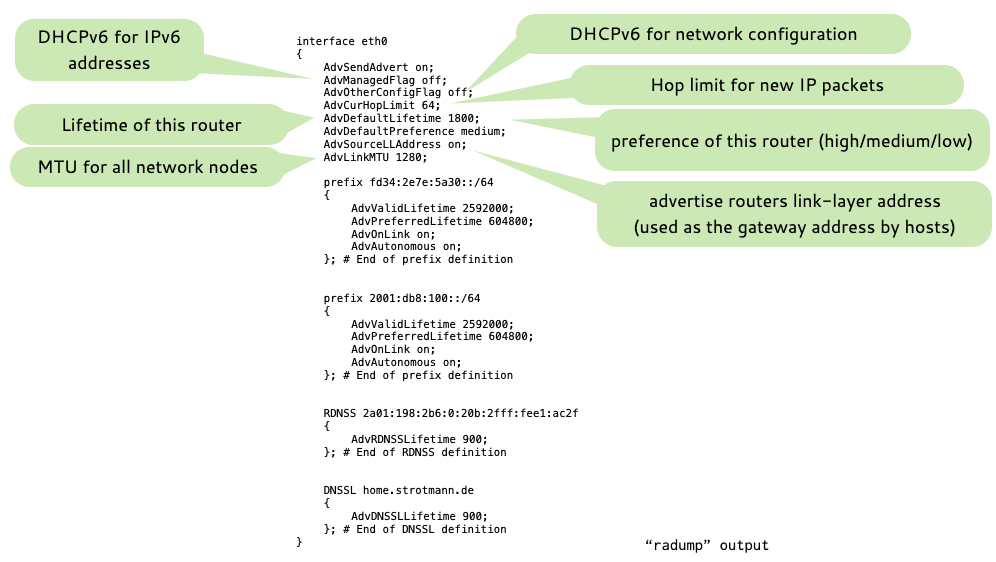

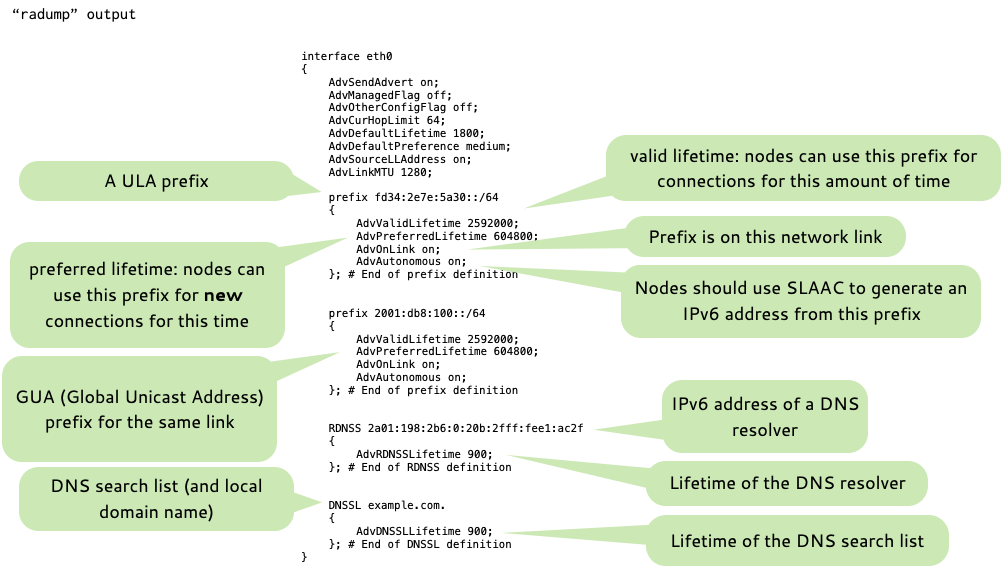

Router Advertisement


Router Advertisement


Router Advertisements

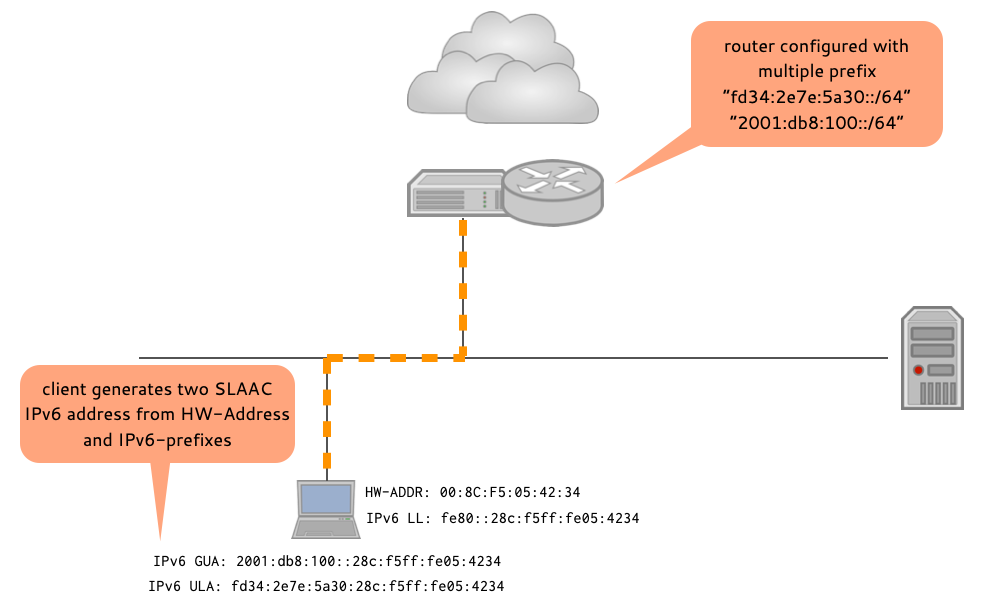

IPv6 Address Configuration variants


IPv6 Address Configuration variants

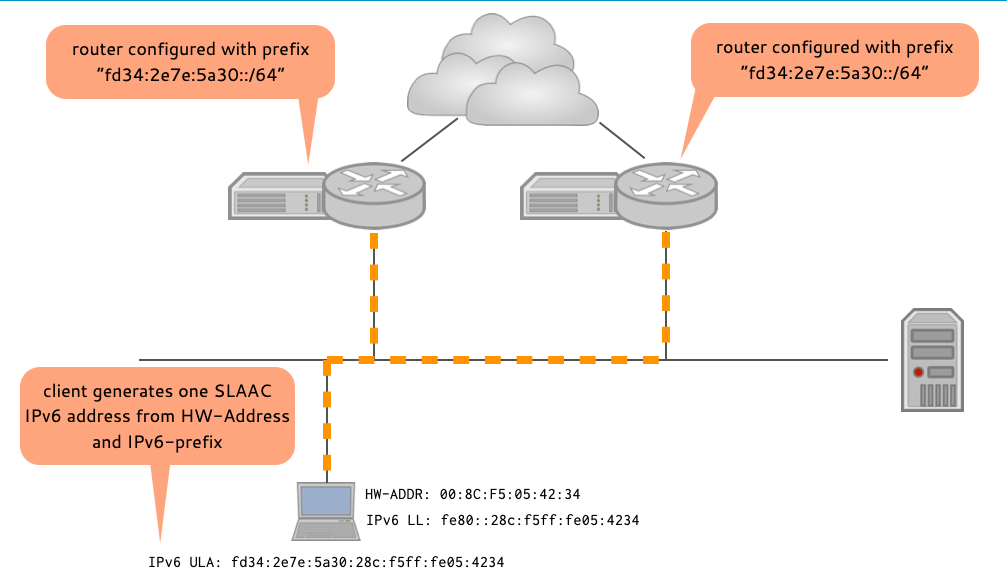

  • Two router with the same prefix


IPv6 Address Configuration variants

  • Two router with different GUA prefixes


SLAAC Addressing Problems

Stateless Address Autoconfiguration (SLAAC) for IPv6

  • Originally SLAAC results in hosts configuring one or more stable addresses composed of a network prefix advertised by a local router, and an Interface Identifier (IID) that typically embeds a hardware address (e.g., an IEEE LAN MAC address)

Problems with stable IPv6 addresses created from hardware information (1)

  • Because these Interface Identifiers do not vary over time, they allow correlation of host activities within the same network, thus negatively affecting the privacy of users

Problems with stable IPv6 addresses created from hardware information (2)

  • The resulting Interface Identifiers are constant across networks, the resulting IPv6 addresses can be leveraged to track and correlate the activity of a host across multiple networks

Problems with stable IPv6 addresses created from hardware information (3)

  • The use of hardware addresses reduce the search space when performing address-scanning attacks

Problems with stable IPv6 addresses created from hardware information (4)

  • The hardware addresses convey information about the device, allow attackers to launch device-specific attacks

Problems with stable IPv6 addresses created from hardware information (5)

  • Replacing the network card hardware results in a new IPv6 address for the host, possibly breaking existing configurations (e.g. for Server type machines)

Using Hardware-Addresses for client type IPv6 addresses is discouraged

IPv6 Privacy Extensions

IPv6 Privacy extensions

  • With IPv6 stateless auto-configuration, IPv6 addresses might be generated from the hardware link-layer address (MAC-Address)
    • This address is stable for a long time
    • The host-id part of such an IPv6 address is not bound to the network location

The privacy issue with stable IPv6 IID

IPv6 Privacy extensions

IPv6 Privacy extensions

  • With IPv6 privacy extensions enabled, a host will use
    • The IPv6 addresses derived from the link-layer address for local communication
    • The IPv6 addressed with a random host-id part for communication with machines in the Internet or other external networks

IPv6 Privacy Extensions

  • IPv6 privacy extensions are available in Windows (since Vista), Linux, macOS, Solaris and BSD IPv6 stacks
    • They are enabled by default on Windows client, Linux "Desktop" Distributions and MacOS X machines
    • But disabled on Windows Server OS systems, Linux "Server" Distributions (e.g. Red Hat EL) and all Unix/BSD systems

IPv6 Privacy extensions Linux

# nano /etc/sysctl.conf

[...]
# Uncomment the next line to enable packet forwarding for IPv6
#  Enabling this option disables Stateless Address Autoconfiguration
#  based on Router Advertisements for this host
#net.ipv6.conf.all.forwarding=1

# enable IPv6 privacy extensions
net.ipv6.conf.eth0.use_tempaddr=2

[...]

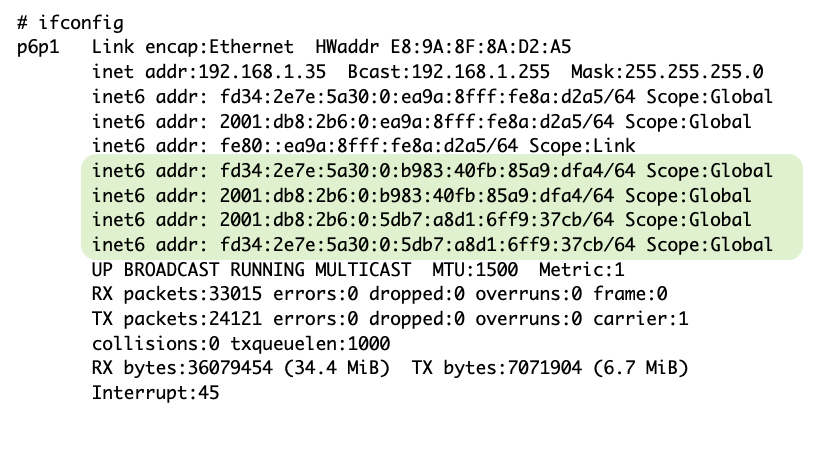

IPv6 Privacy extensions Linux


IPv6 Privacy extensions macOS

#  more /etc/sysctl.conf
net.inet6.ip6.use_tempaddr=1

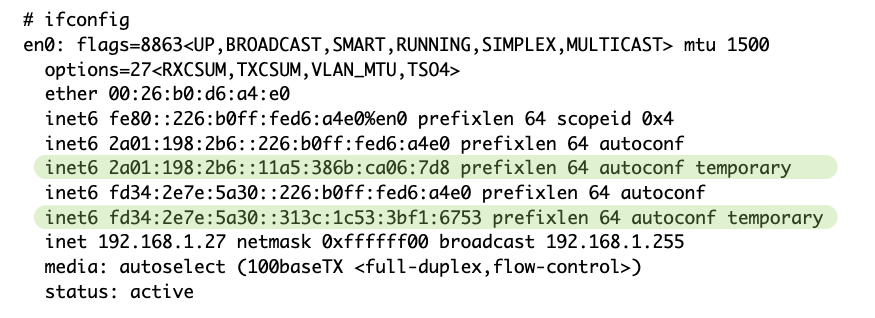

IPv6 Privacy extensions macOS


Stable Privacy-Enhanced Addresses

Stable Privacy-Enhanced Addresses

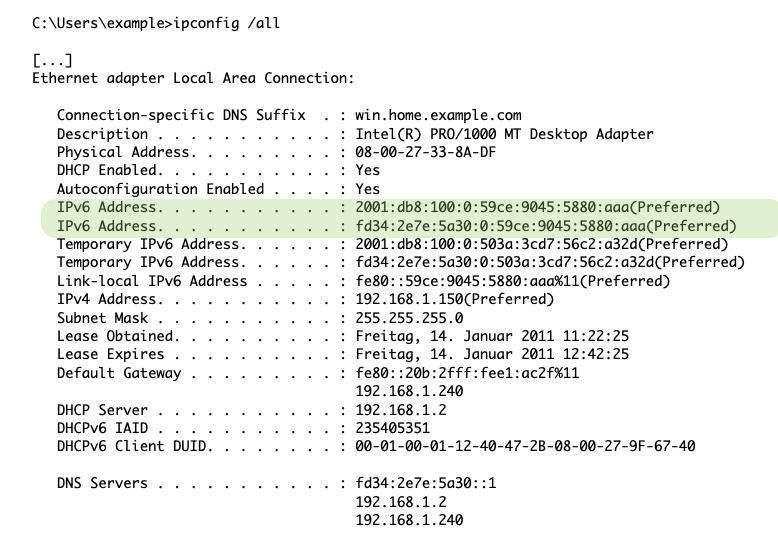

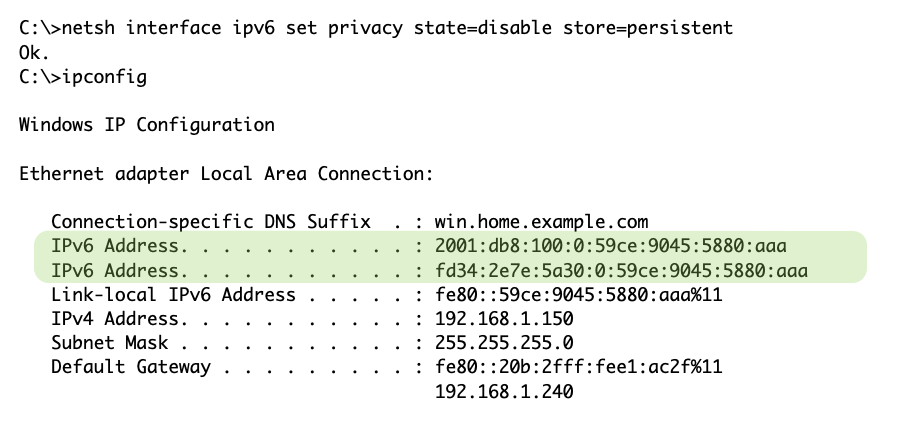

IPv6 Privacy extensions on Windows

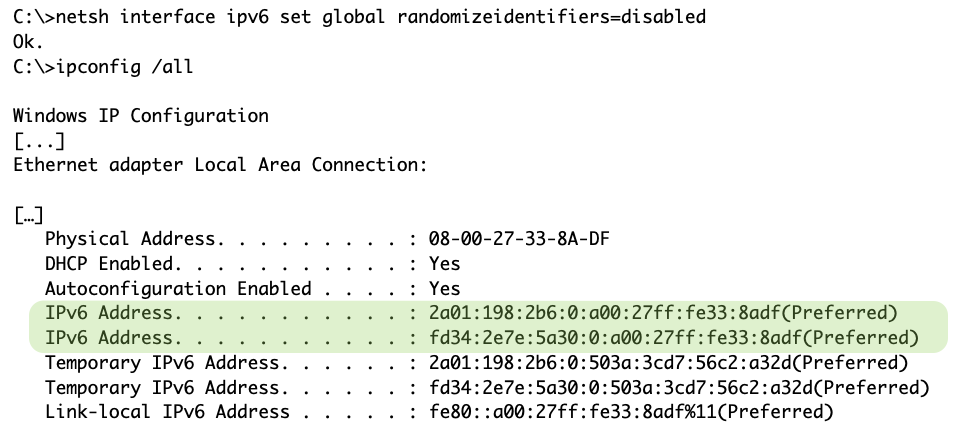

IPv6 Hardware IIDs on Windows Clients


IPv6 Hardware IIDs on Windows Clients


Quiz

  • which addresses below are (most likely) not privacy addresses?
    • 2001:db8::5efe:169.254.10.170
    • 2001:db8:2b6:0:5db7:a8d1:6ff9:37cb
    • fd34:2e7e:5a30:0:ea9a:8fff:fe8a:d2a5
    • 2a01:198:2b6::226:b0ff:fed6:a4e0

Questions?
