IPv6 Fundamentals

Leaving the chains of IPv4 behind

Carsten Strotmann

Created: 2025-01-27 Mon 08:46

Agenda

IPv6 in 2025
IPv6 challenges or "why don't we have it everywhere?"
IPv6 Addressing

IPv6 in 2025

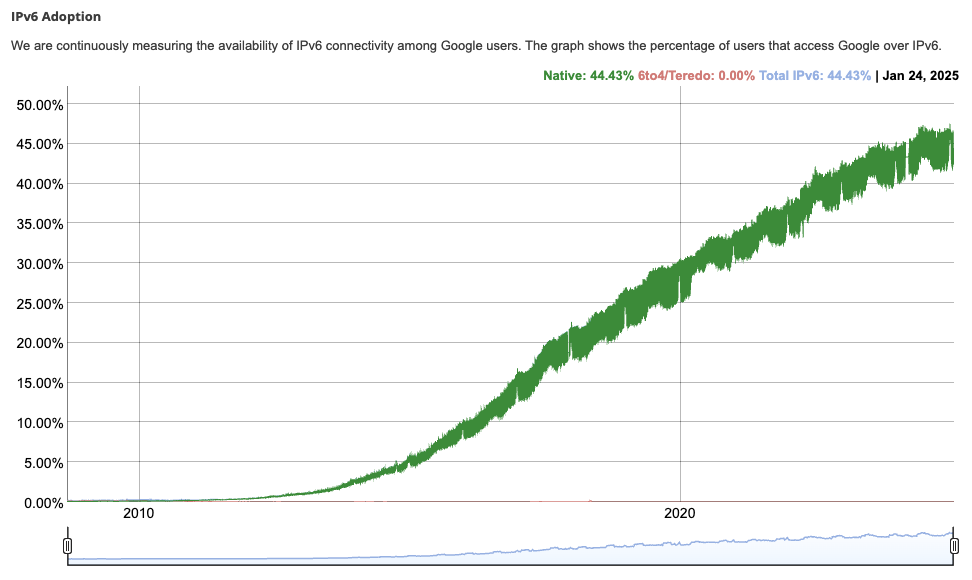

IPv6 as seen by Google

(https://www.google.com/intl/en/ipv6/statistics.html)

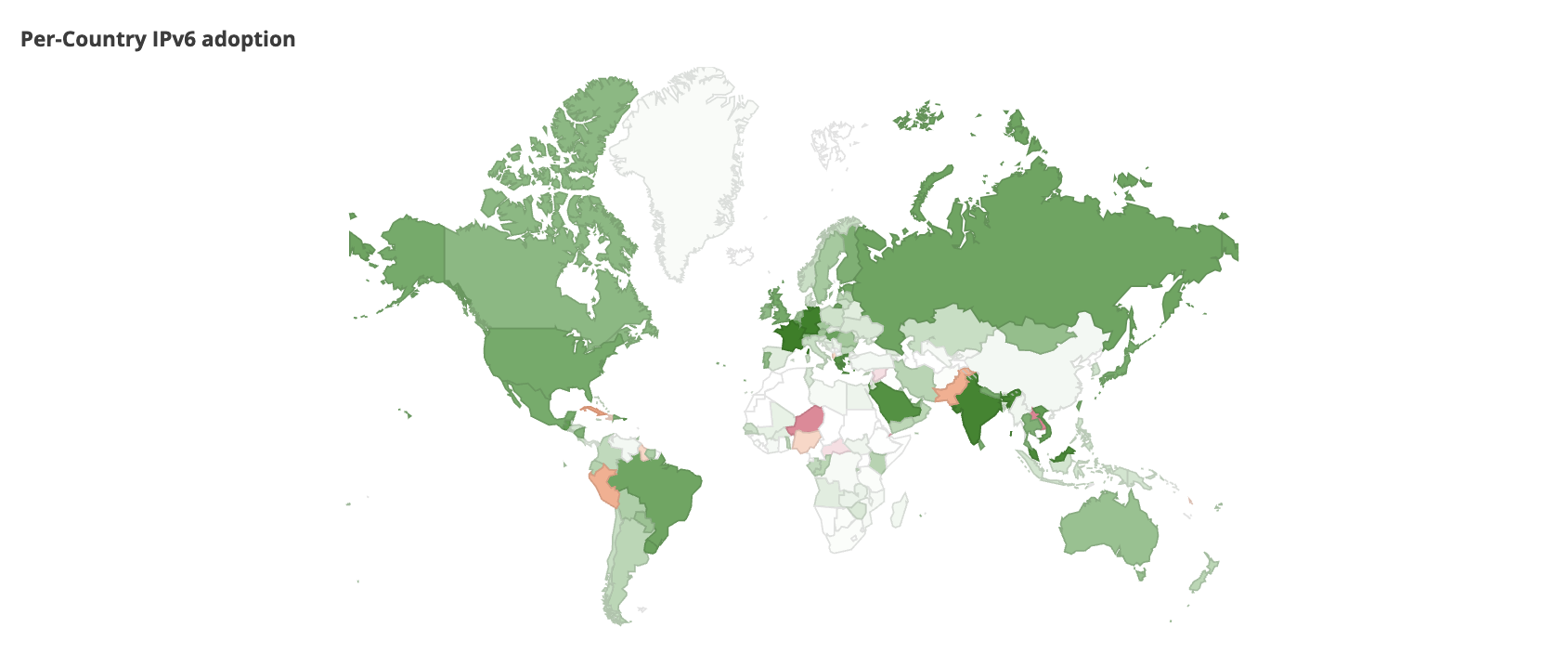

IPv6 by country as seen by Google

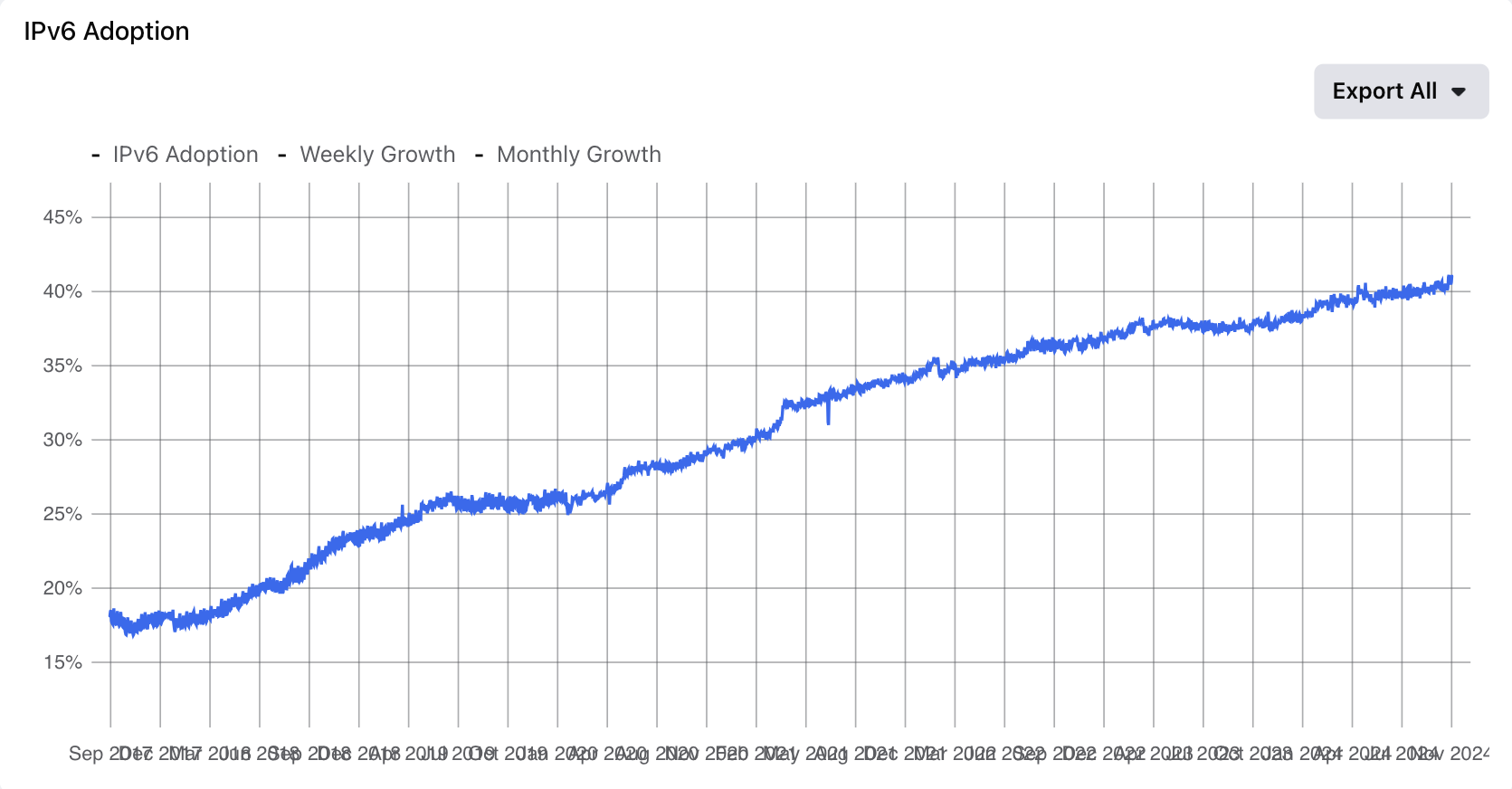

IPv6 as seen by Facebook

(https://www.facebook.com/ipv6/)

Anatomy of IPv6 projects

IPv6 challenges

IPv6 is as much a human challenge as it is a technical challenge
- People are opposed to change
- IPv6 changes may break things in the network

IPv6 challenges

IPv6 cannot be a "side project"
- It must have management attention and must be 100% backed by management

IPv6 challenges

What will happen when introducing IPv6 to a network
- There will be friction
- There will be errors and breakage
- Administrators/developers must have a safe environment to be able to innovate with IPv6

IPv6 Benefits

Flexibility
Modern IETF protocols building on IPv6 (but not IPv4)
Lean network management and planning

IPv6 Benefits

Less load on Firewalls (no NAT for UDP based video-conferencing)
Simpler firewall rules -> less complexity
Better latency (XBox gaming …)
Stability (IPv4-as-a-service is getting brittle)
Less costs per IP addresses (IPv4 = ~ 35-60 US$ / IPv6 = 0 US$)

IPv4 in 2025

The last IPv4 blocks were given out to the RIRs by IANA on February 1st, 2011
- ARIN run out of IPv4 addresses in 2015
- RIPE run out of IPv4 addresses in 2020
- LACNIC run out of IPv4 addresses in 2020
- APNIC and AFRINIC are low on the last /8 block

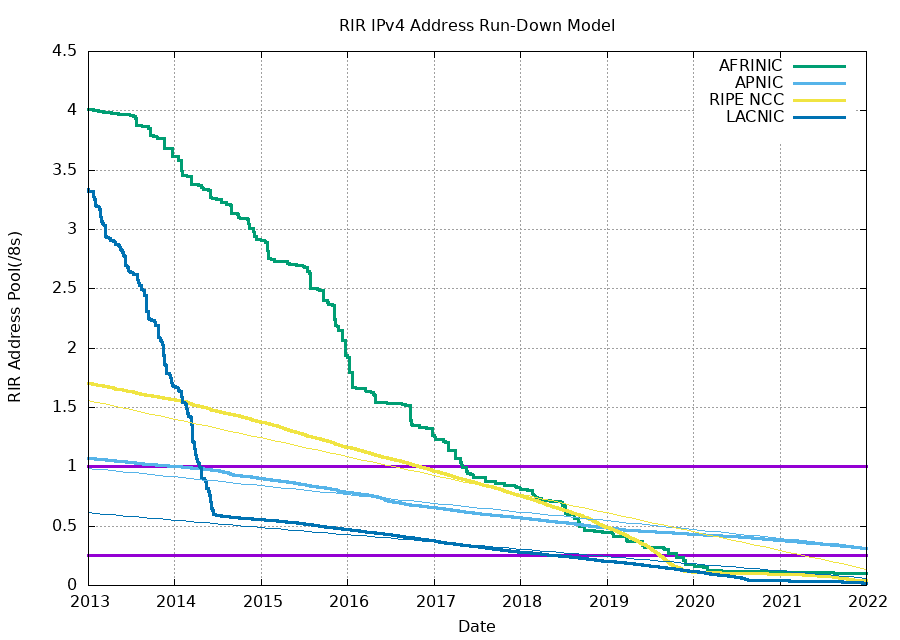

IPv4 in 2025

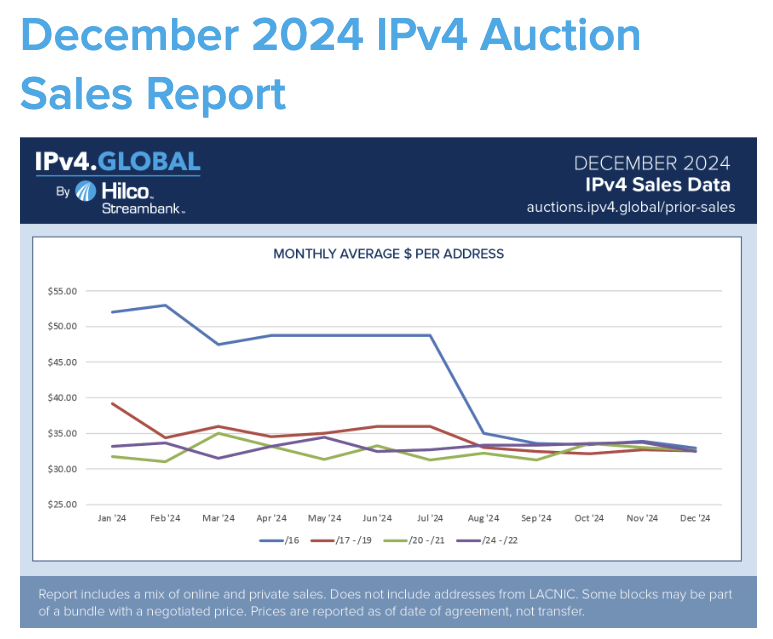

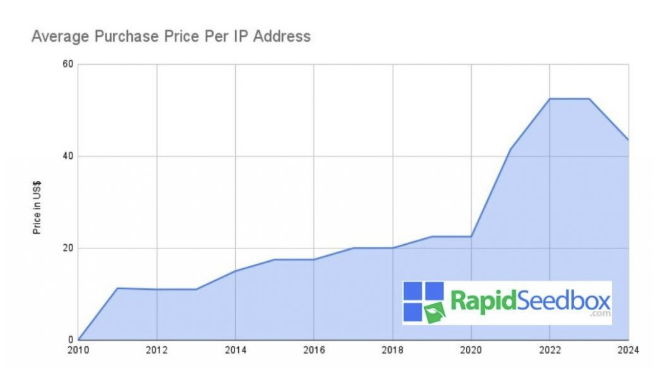

IPv4 address costs

IPv6 trends

WiFi: One IPv6 /64 subnet per host -> natural user separation on cheap access points
Datacenter: One IPv6 address per service endpoint:
- No IP + Port tupel anymore
- IPv6 overlay networks with security boundaries

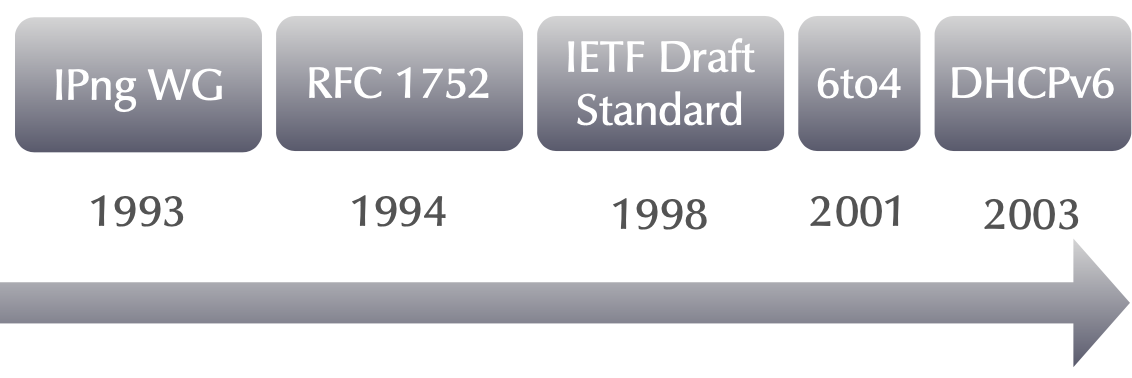

IPv6 History

RFC 6540 (April 2012) IPv6 Support Required for All IP-Capable Nodes

New IP implementations must support IPv6.
Updates to current IP implementations should support IPv6.
IPv6 support must be equivalent or better in quality and functionality when compared to IPv4 support in a new or updated IP implementation.

RFC 6540 (April 2012) IPv6 Support Required for All IP-Capable Nodes

New and updated IP networking implementations should support IPv4 and IPv6 coexistence (dual-stack), but must not require IPv4 for proper and complete function.
Implementer are encouraged to update existing hardware and software to enable IPv6 wherever technically feasible.

IPv6 Basics

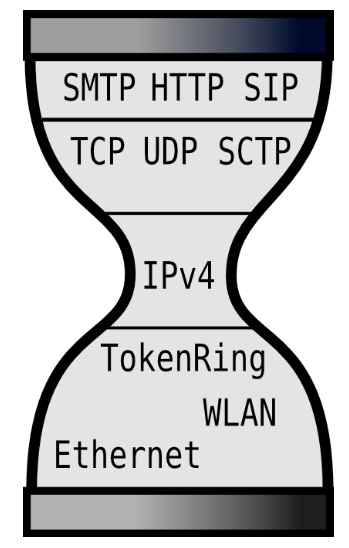

TCP/IP Hourglass

TCP/IP Hourglass for IPv6

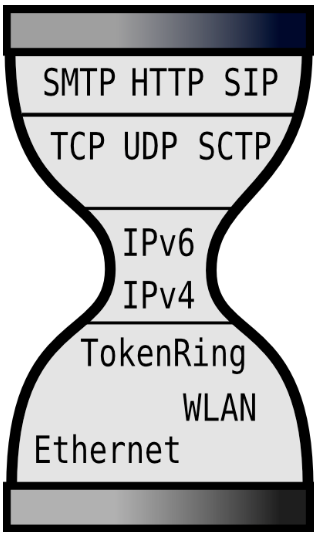

TCP/IP Hourglass for Dual-Stack

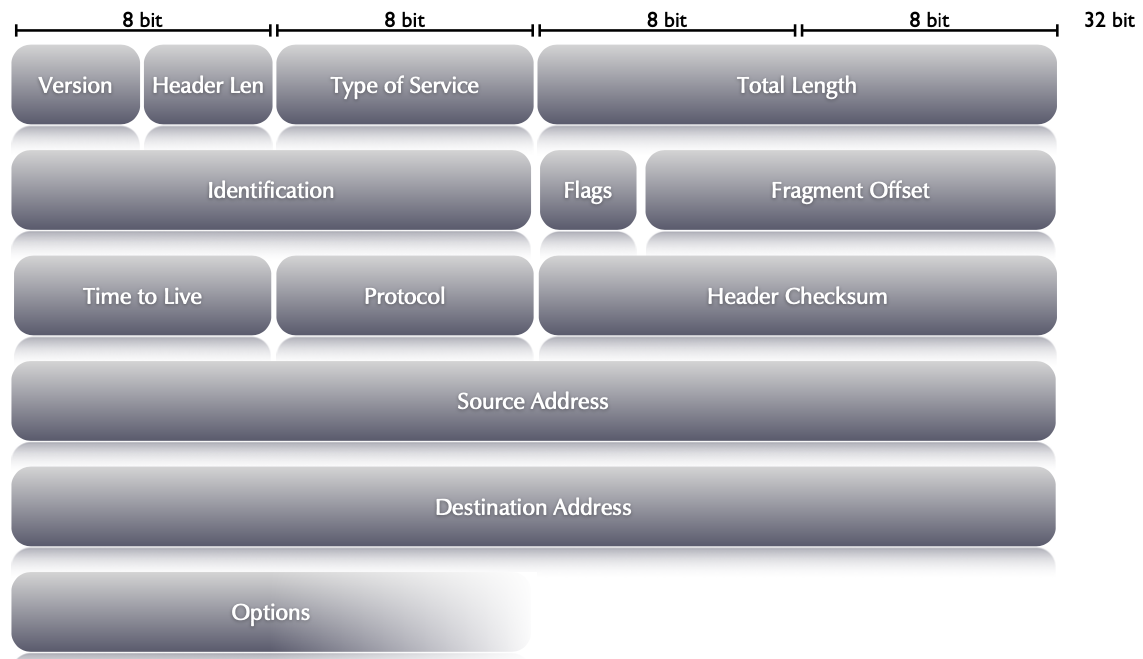

The IPv4 Packet

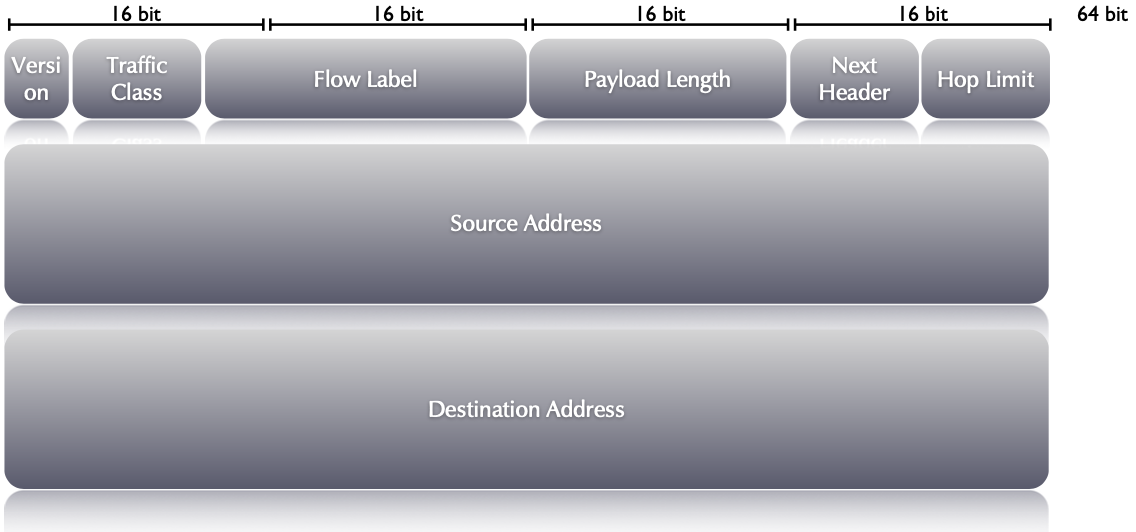

The IPv6 Packet

IPv6 Header

IPv6 uses extension headers instead of fixed options
- headers are chained one after another
- next header field points to the next extension headers
  - or to the upper level protocol

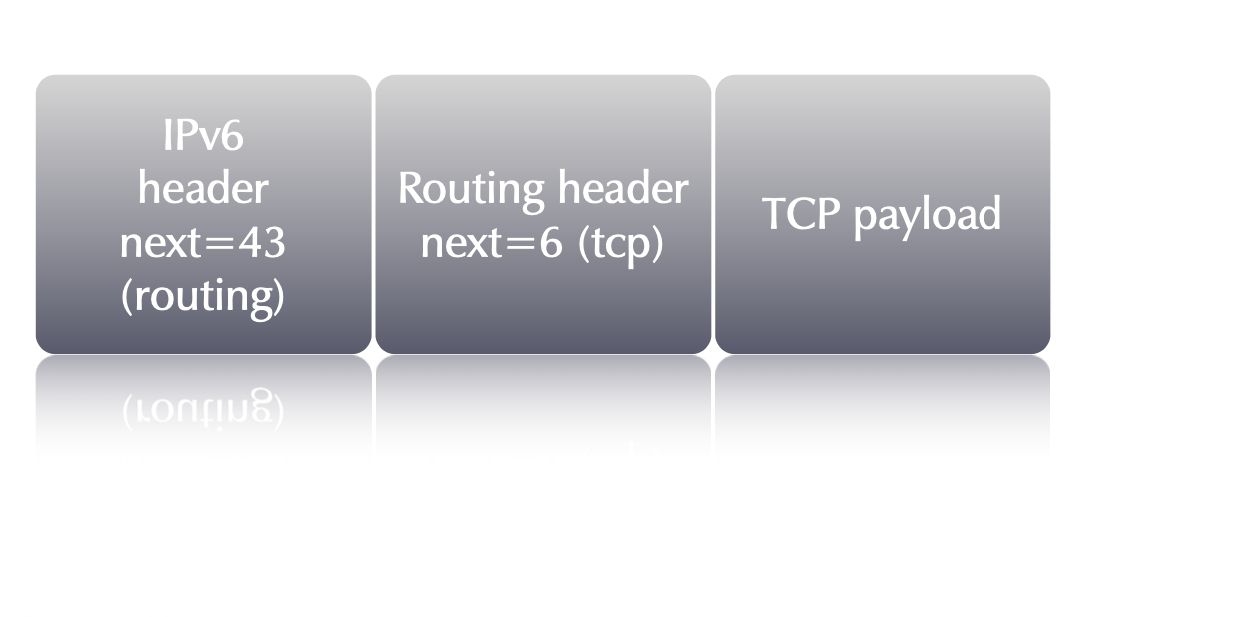

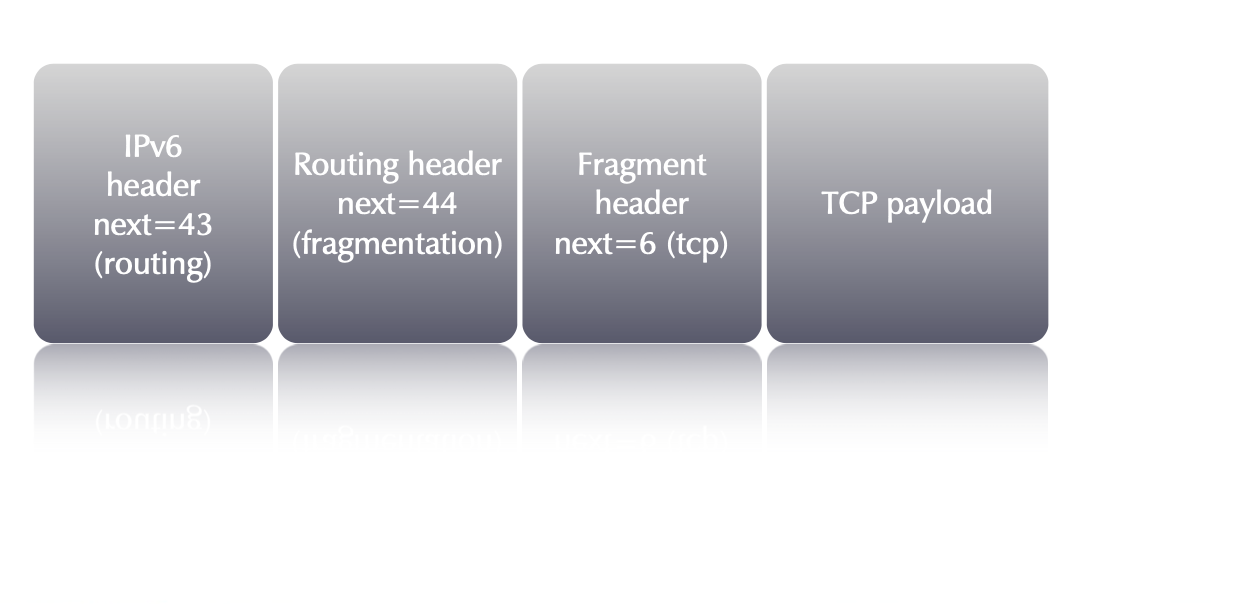

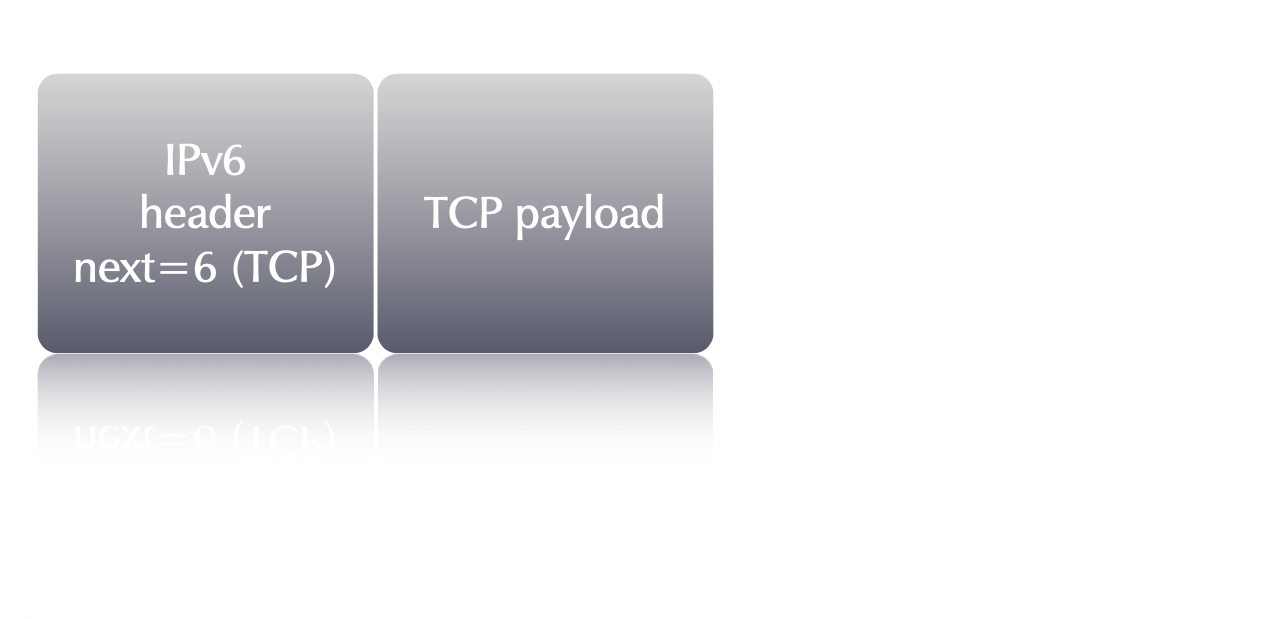

IPv6 Header Example 1

IPv6 Header Example 2

IPv6 Header Example 3

Rules for extension Headers

The following rules apply to extension headers:
- Each extension header should not appear more than once, with the exception of the Destination Options header.
- The Hop-by-Hop Options header should only appear once.
- The Hop-by-Hop Options header should be the first header in the list because it might be examined by every node along the path.

Rules for extension Headers (2)

The Destination Options header should appear at most twice (before a Routing header and before the upper-layer header).
The Destination Options header should be the last header in the list, if it is used at all.
The Fragment header should not appear more than once and should not be combined with the Jumbo Payload Hop-by-Hop option

Rules for extension Headers (3)

The entire IPv6 header chain must be contained in the first fragment of a packet
Other than the path MTU constraints, there are no other limits to the number of IPv6 EHs that may be present in a packet
The only way for a node to obtain the upper-layer protocol type or find the upper-layer protocol header is to parse and process the entire IPv6 header chain, in sequence, starting from the mandatory IPv6 header until the last header in the IPv6 header chain is found

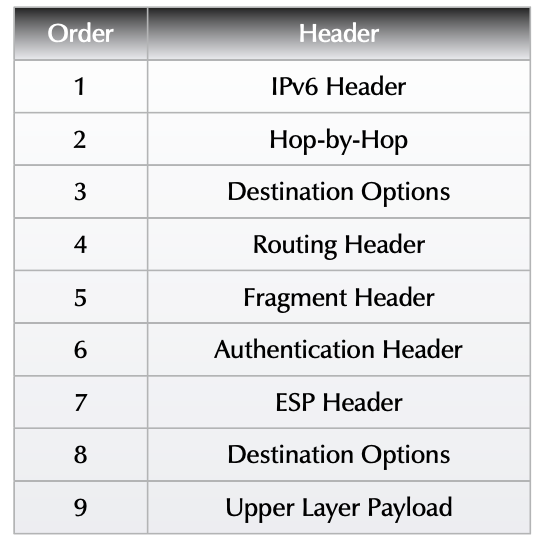

Order of Extension Header

Operational Implications of Extension Headers

RFC 9098 - Operational Implications of IPv6 Packets with Extension Headers
- Packets with EHs are intentionally dropped in the public Internet in some circumstances

Path MTU Detection (PMTUD)

Path Maximum Transmission Unit Detection
- IPv6 Nodes have a minimum MTU of 1280 byte
- only the sender is allowed to fragment a datagram

Path MTU Detection (PMTUD)

if a device on the way cannot handle the size of a packet
- it will drop the packet

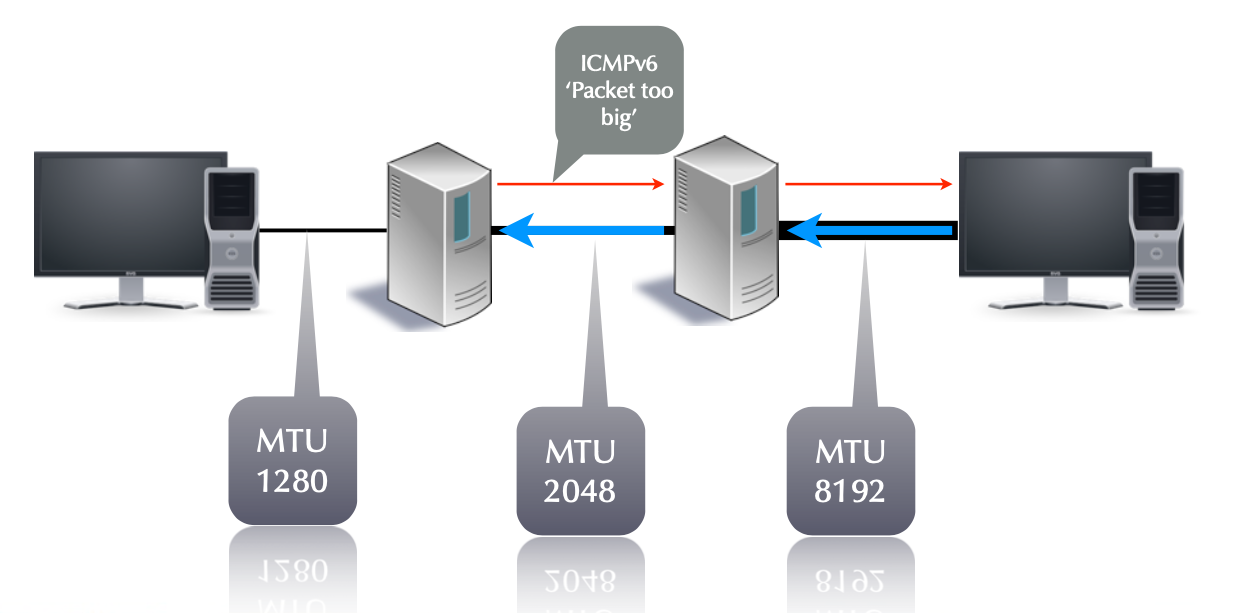

- and will inform the sender of MTU conflict and the maximum MTU (using ICMPv6 Packet too big message)
- if ICMPv6 Packet too big messages are blocked, IPv6 is broken!

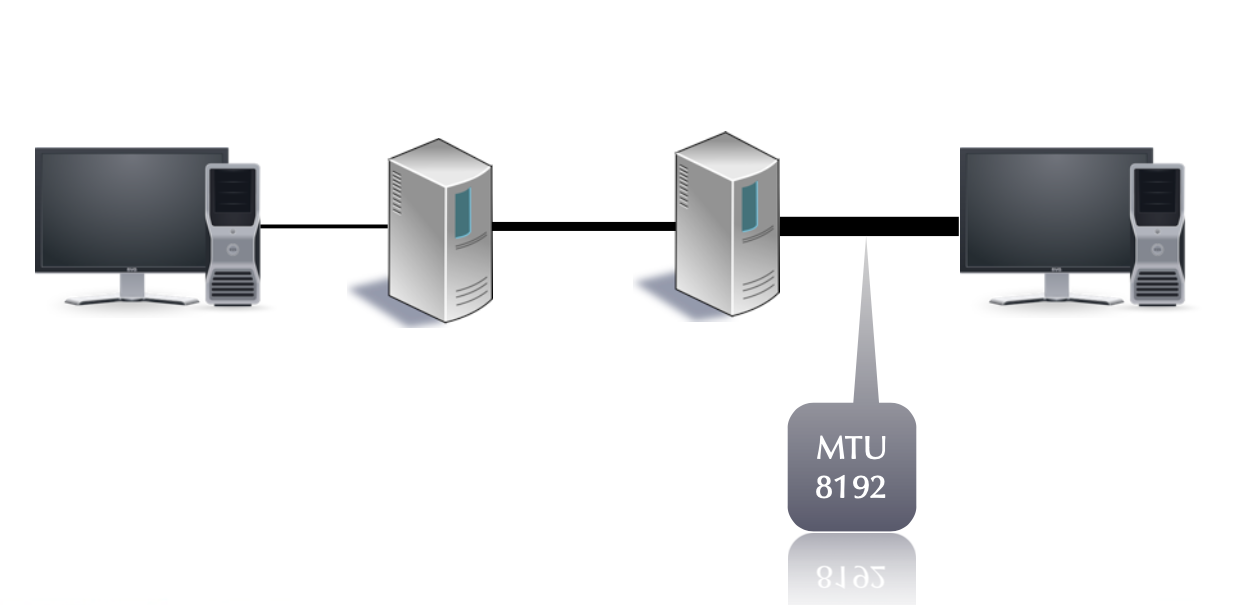

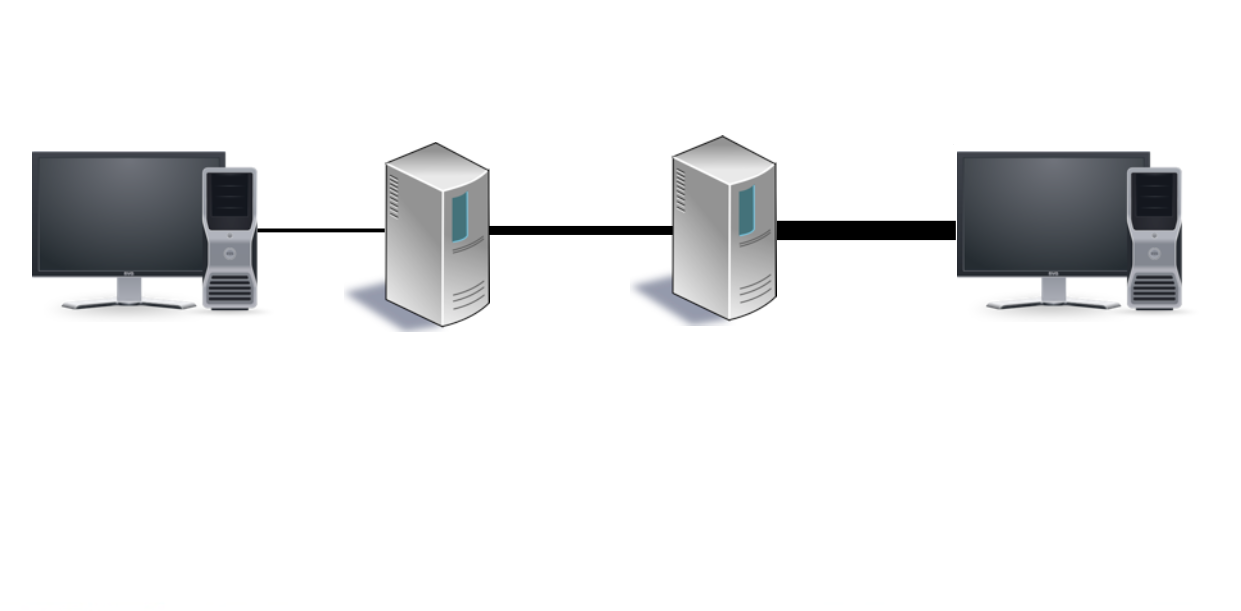

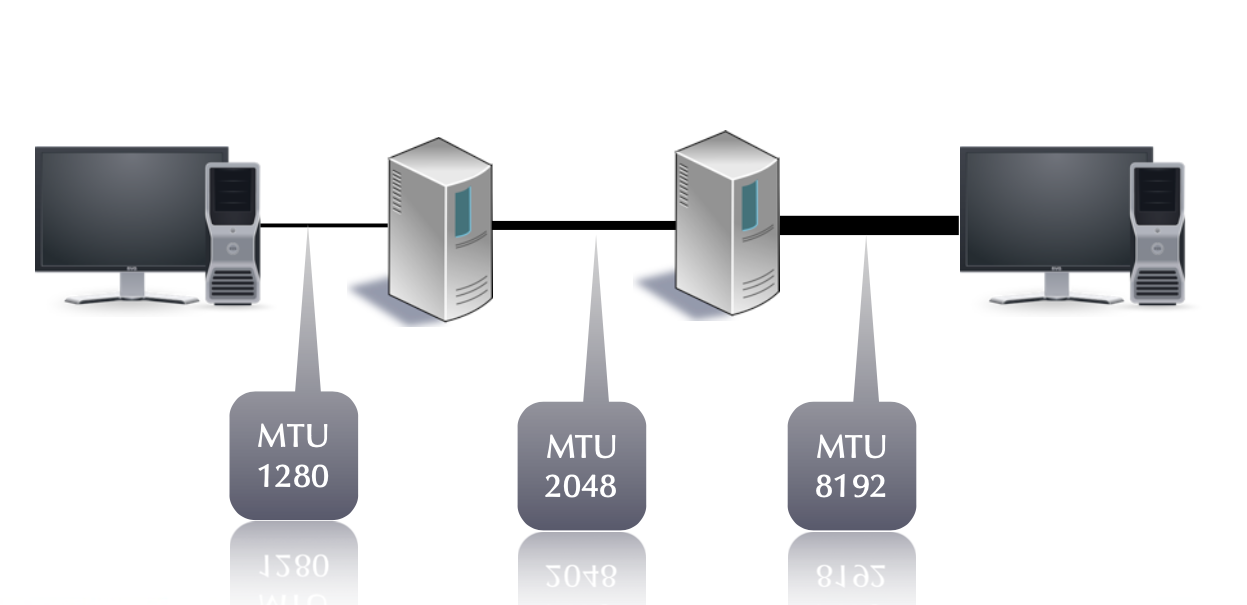

PMTUD (1)

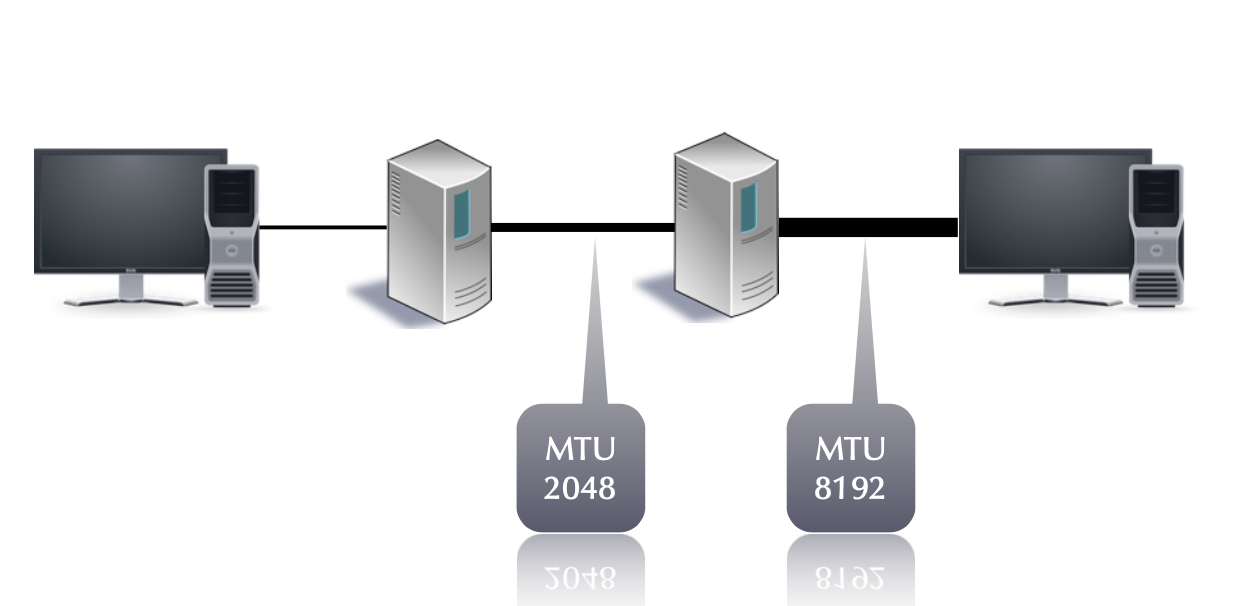

PMTUD (2)

PMTUD (3)

PMTUD (4)

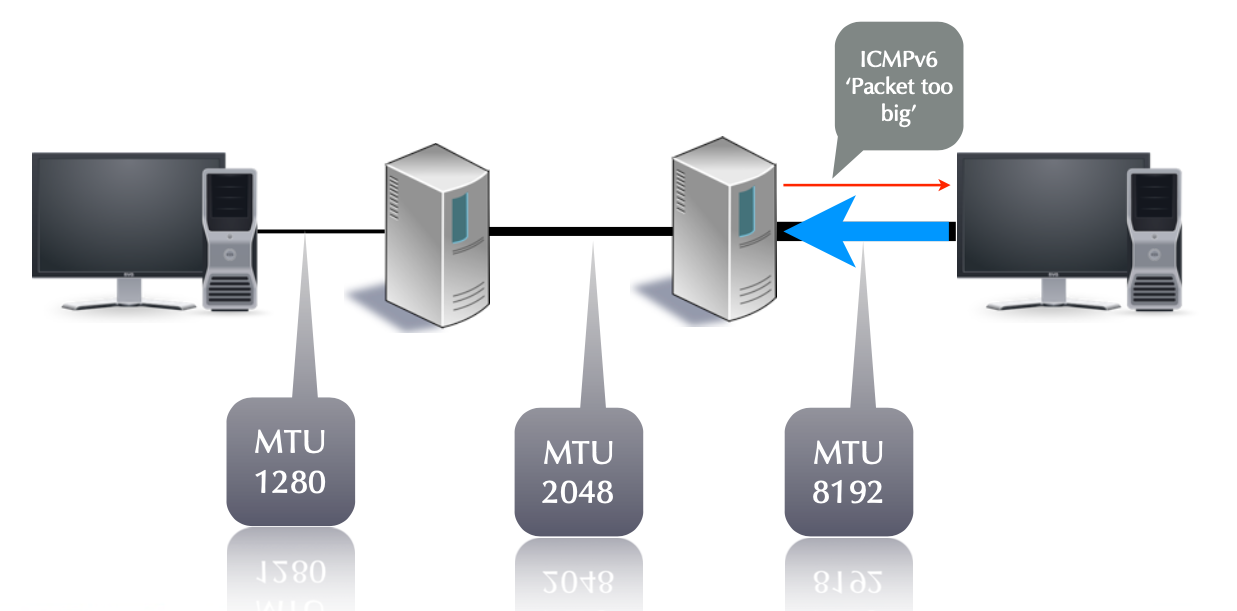

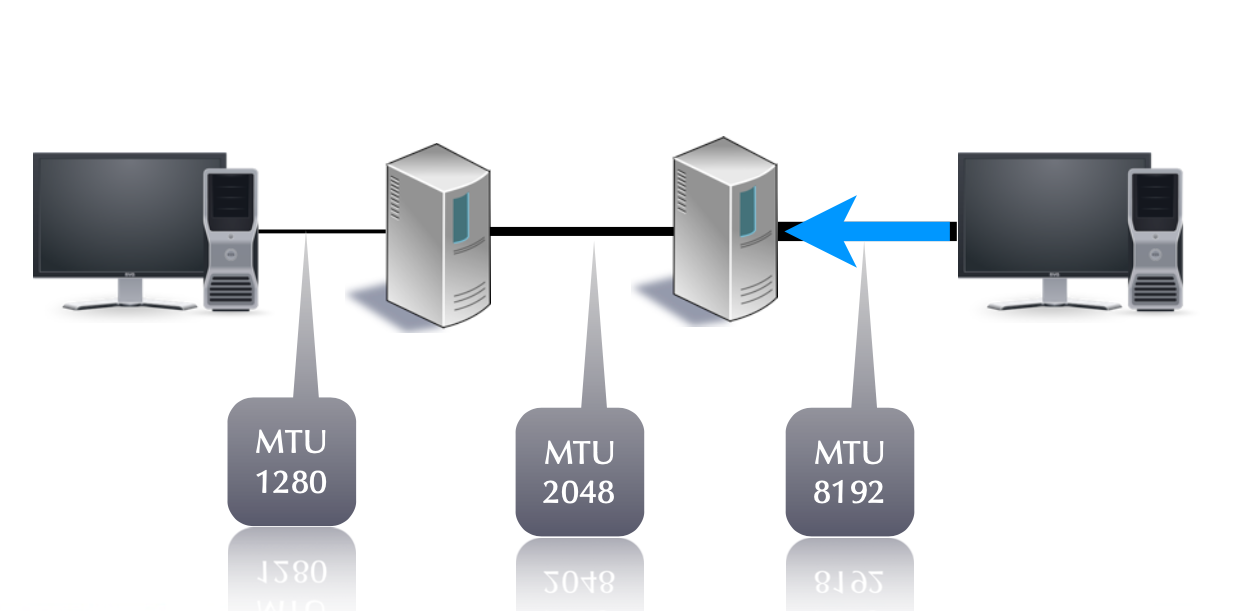

PMTUD (5)

PMTUD (6)

PMTUD (7)

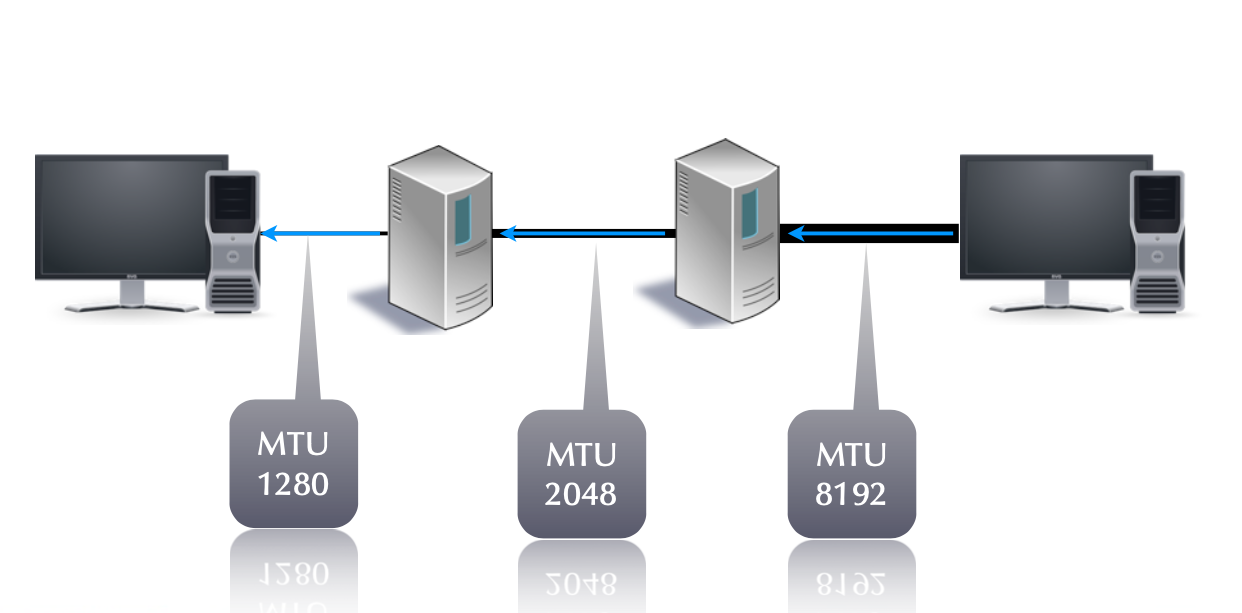

PMTUD (8)

IPv6 Addresses

IPv6 Addresses are 128bit long (16 bytes)
- IPv4 had 32bit per Address
- per Bit, the Address space doubles
IPv6 has 2^128 Addresses (340 billion billion billion billion or 3.4 × 10^38 or 340 undecillion)

IPv6 Address Format

IPv6 Addresses are written using 32 hexadecimal digits
- the digits are arranged in 8 groups of four digits, separated by colon :
- the display rules for IPv6 addresses have been redefined in RFC 5952

IPv6 Address Format

A full IPv6 Address: 2001:0db8:1c01:0029:021a:5f4f:fe9a:5aab

IPv6 Address Abbreviations

leading zeros of every group of 4 hex-digits can be omitted: 2001:0db8:1c01:0029:021a:5f4f:fe9a:5aab → 2001:db8:1c01:29:21a:5f4f:fe9a:5aab

IPv6 Address Abbreviations

one sequence of all zero groups can be replaced by a pair of colons: 2001:db8:100:0:0:0:541:fa20 → 2001:db8:100::541:fa20

IPv6 Address Abbreviations

IPv6 Address Prefixes:
- 2001:db8:100::/64
- 2001:db8::/32
- 2002::/16
The Prefix defines the number of important bits in this network from the start

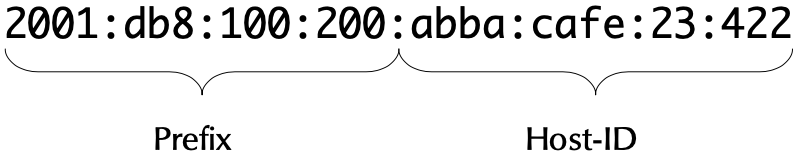

IPv6 prefix and host-id

Prefix and Host-ID

Types of IPv6 Addresses

Unicast (one to one communication)
Multicast (one to many communication)
Anycast (one to some communication)

Types of IPv6 Unicast Addresses

Global Unicast Addresses (usable in the whole Internet)
Link-Local Addresses (only valid in a single subnet)
Site-Local Addresses (deprecated, originally for a site)
Unique-Local Addresses (like private IP addresses, but statistically unique)
Special Addresses (see next slide)
Transition Addresses (IPv4 to IPv6 Transition Protocols)

IPv6 Special Addresses

Unspecified Address (all zeros): ::
Loopback Address: ::1

Global Unicast Addresses

IPv6 Interface ID

The Interface ID can be build from
- an Interface EUI-64 ID (7th bit inverted, used for stable addresses on server machines)
- MAC Address (48bit) (7th bit inverted and 0xfffe inserted after 3rd byte of the MAC address)
- based on the network (stable only for a single network)
- random (privacy)
- manual

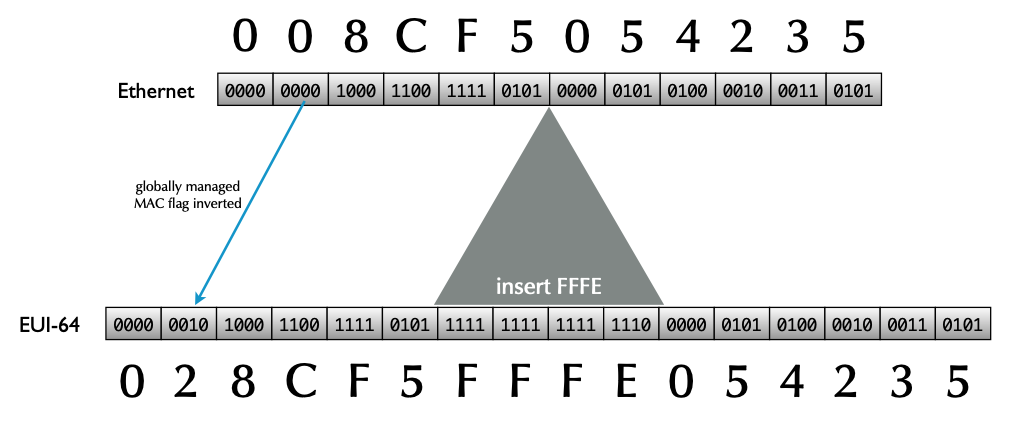

MAC-Address to Interface ID

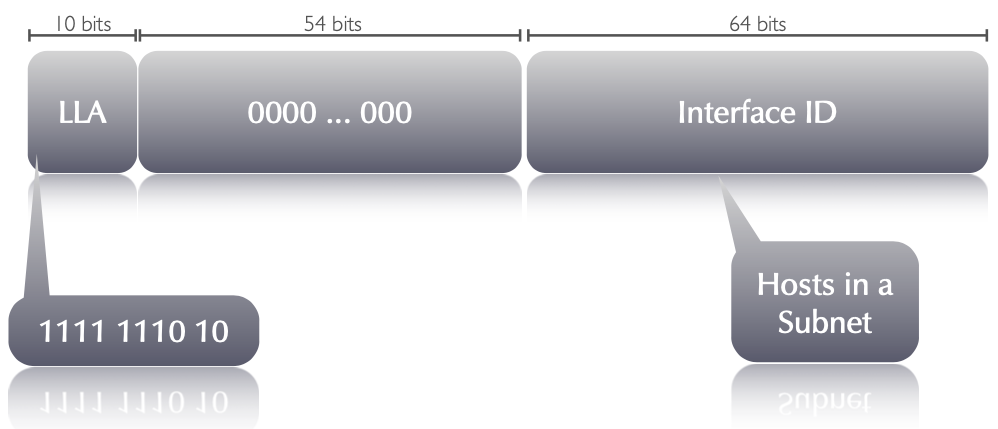

Link-Local-Addresses

Link-Local addresses are used for communication of hosts on a single link
- link-local addresses are always configured if IPv6 is enabled
- used for Neighborhood Discovery and local communication

Link-Local-Addresses

Prefix for Link-Local Addresses is fe80::/10
- IPv6 router never forward link-local addresses
- similar to IPv4 APIPA (automatic private IP addressing, 169.254.0.0/16)

Zone IDs

Link-Local addresses can be reused on every link
- a machine with more that one link can reach different machines with the same link-local IPv6 address

Zone IDs

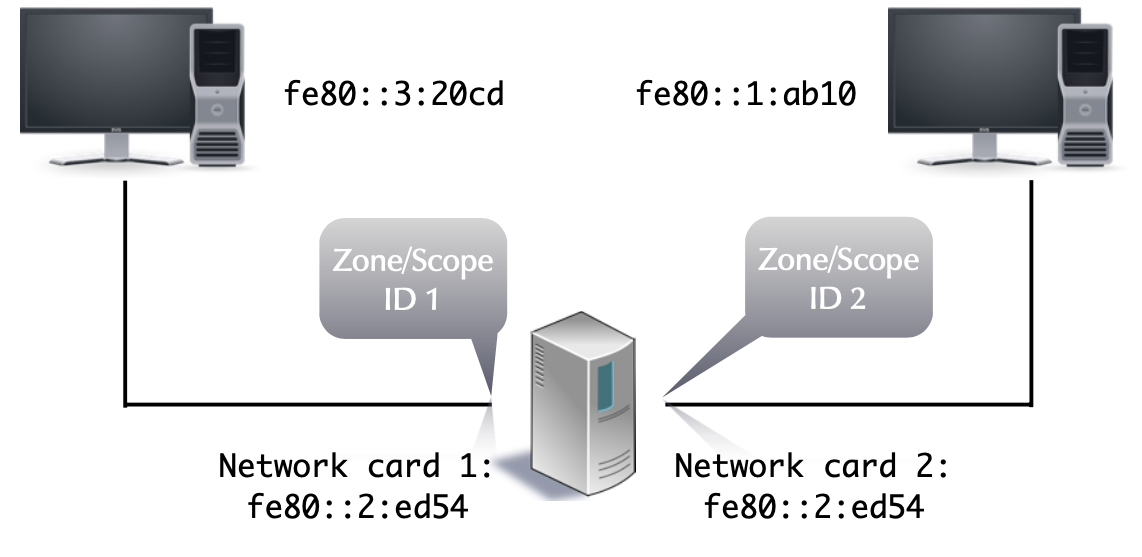

Zone/Scope ID

en1: flags=8863<UP,BROADCAST,SMART,RUNNING,SIMPLEX,MULTICAST> mtu 1500
    inet6 fe80::226:bbff:fe05:fa4f%en1 prefixlen 64 scopeid 0x5
    inet 10.122.104.112 netmask 0xffffff80 broadcast 10.122.104.127
    ether 00:26:bb:05:fa:4f
    media: autoselect status: active
    supported media: autoselect

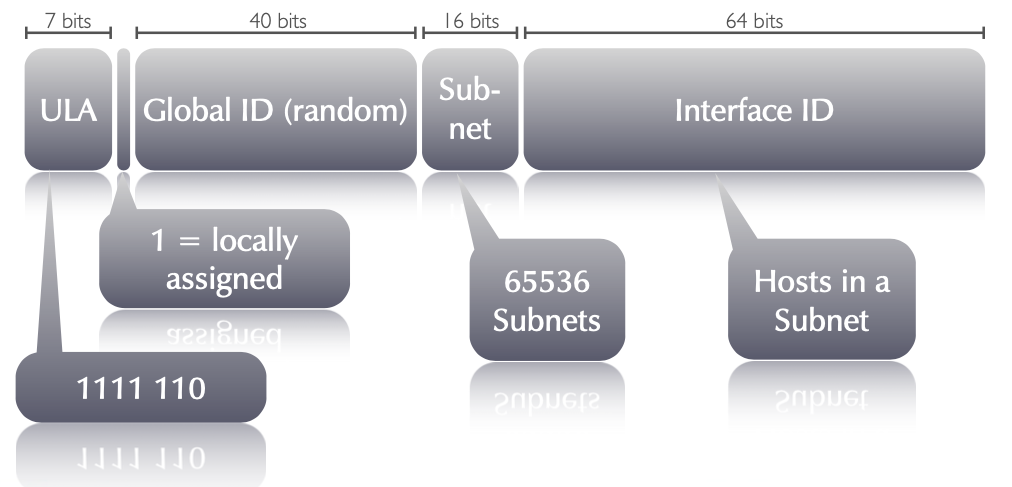

Unique-Local-Addresses

Unique local addresses are private to an organization, yet statistically unique
- low probability of address clashes if two sites with ULA merge
- the L flag indicates local assignment (default)
ULA Addresses have the prefix fd00::/8
- ULAs have a global scope (not scope/zone ID) •will not be routed in the Internet

Multicast Addresses

multicast addresses always starts with ff
- IPv6 uses multicast for internal services
- no broadcasts anymore, only multicast!

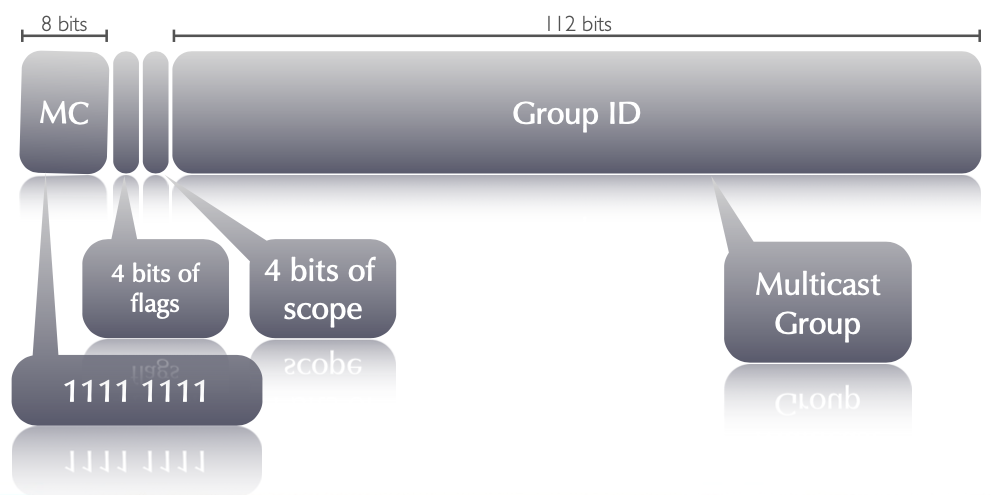

Multicast Address Flags

Bit	usage
0	Transient Flag: 0 = permanent address (IANA assigned, well-known) 1 = transient address
1	Prefix flag (RFC 3306)
2	Rendezvous Point (RFC 3956)
3	undefined

Multicast Address Scope

Hex-Value	Scope
1	Interface local
2	Link-Local
4	Admin-Local
5	Site-Local
8	Organization Local
E	Global

Node Local Scope

address	usage
ff01::1	all nodes address
ff01::2	all routers address
ff01::fb	mDNSv6

Link-Local Scope

address	usage
ff02::1	all nodes address
ff02::2	all routers address
ff02::fb	mDNSv6
ff02::f	UPnP Devices
ff02::1:1	Link Name
ff02::1:2	all DHCP agents
ff02::1:3	LLMNR
ff02::101	network time protocol (ntp)
ff02::1:ffXX:XXXX	Solicited-Node Address
ff02:0:0:0:0:2:ff00::/104	Node Information Queries RFC 4620

Site-Local/Variable Scope

address	usage
ff05::2	all routers address
ff05::fb	mDNSv6
ff05::1:3	all DHCPv6 Servers
ff0x::101	network time protocol (NTP)

Solicited-Node Address

the Solicited node address is used for link-layer address resolution
- was ARP in IPv4
the solicited-node multicast address is build from the prefix ff02::1:ff00:0/104 and the last 24 bits of the unicast IPv6 address to be resolved

Solicited-Node Address

Transition Addresses

IPv4 compatible Addresses 0:0:0:0:0:0:w.x.y.z (::w.x.y.z)
- deprecated by RFC4291
IPv4 mapped Addresses 0:0:0:0:0:ffff:w.x.y.z (::ffff:w.x.y.z)
